High quality mine cable hook

The product name：High quality mine cable hook
QQ：495579766
Telephone: +086-15633189629
Email: kayzhang90@gmail.com
Time: 2022-10-25 16:42:51
Culture

The product description

The mine cable hook can be flexibly applied according to the replacement of the erected cable, which can save time, labor and effort when erecting, removing, increasing and replacing the cable. The joint rear hook will not swing from side to side and there is no need to move the bottom hook when removing the middle hook. This PRODUCT HAS beautiful appearance, novel layout and durability. It is an ideal product to replace the traditional metal cable hook. It is especially suitable for the erection of cables.

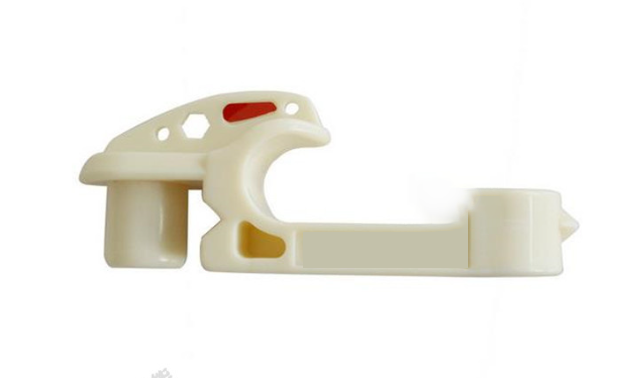

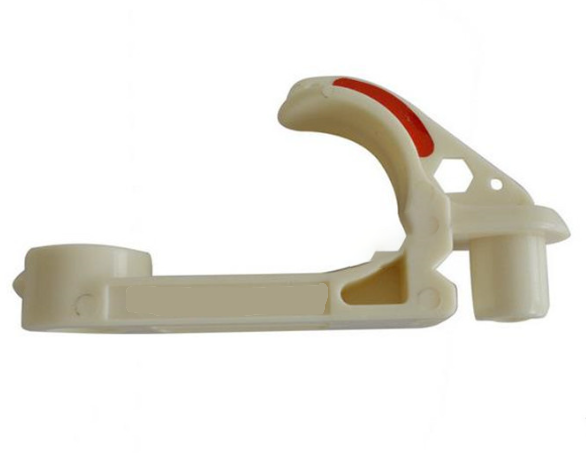

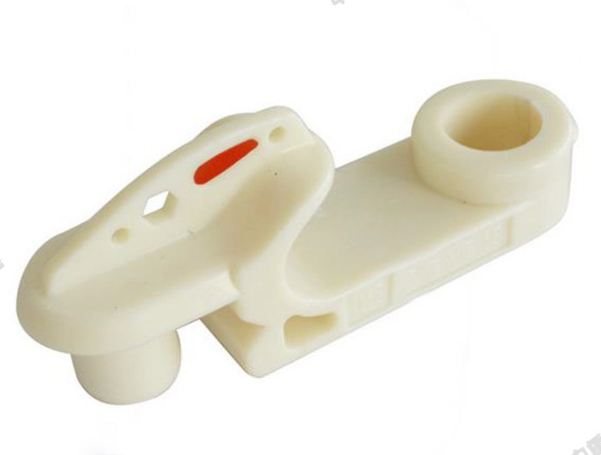

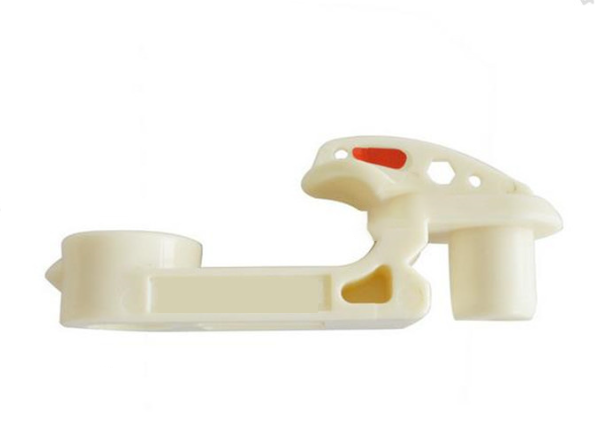

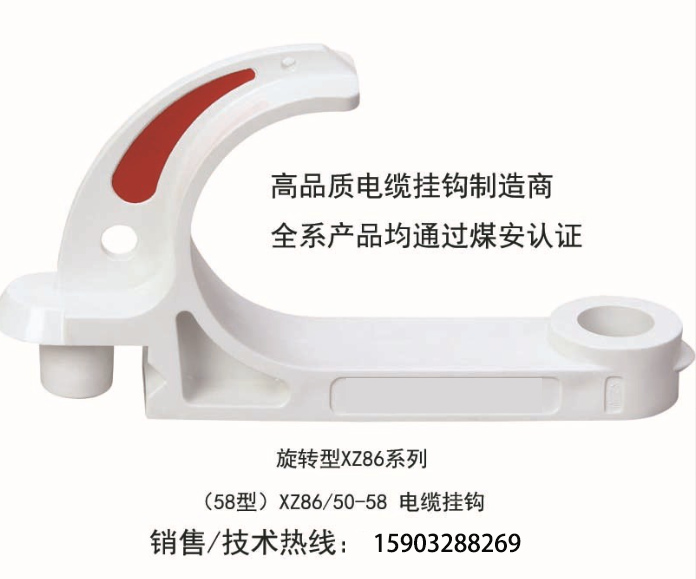

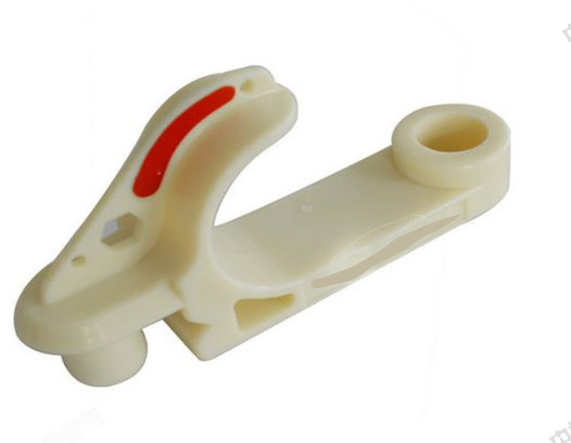

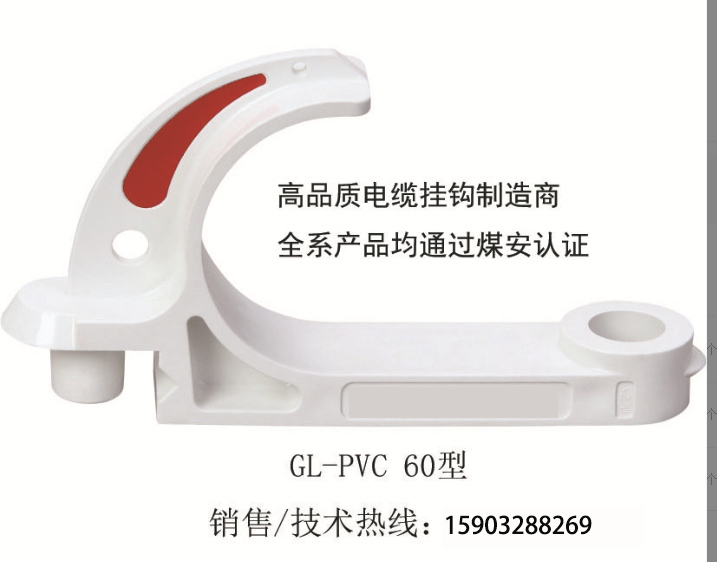

PRODUCT DISPLAY

Performance characteristics:

Stable ANTISTATIC AND FLAME RETARDANT PERFORMANCE - HOOK ANTIstatic agent and flame retardant symmetrical distribution in the
resin body, antistatic and flame retardant performance indicators will not be affected by the extension of time.
Light WEIGHT, EASY INSTALLATION - LIGHT weight (is 1/7 of steel pipe), low cost, transportation, fast installation, used in
underground installation, not only can reduce the labor intensity of workers, improve the efficiency of things, and low project
cost.
Aging resistance, erosion resistance - normal service life of up to 50 years, without the need to remove the hook and cable below,
the hook monomer can be directly disassembled at will.
Anti-swing - Hook combination on the same line, will not swing from side to side, more beautiful, more reliable.

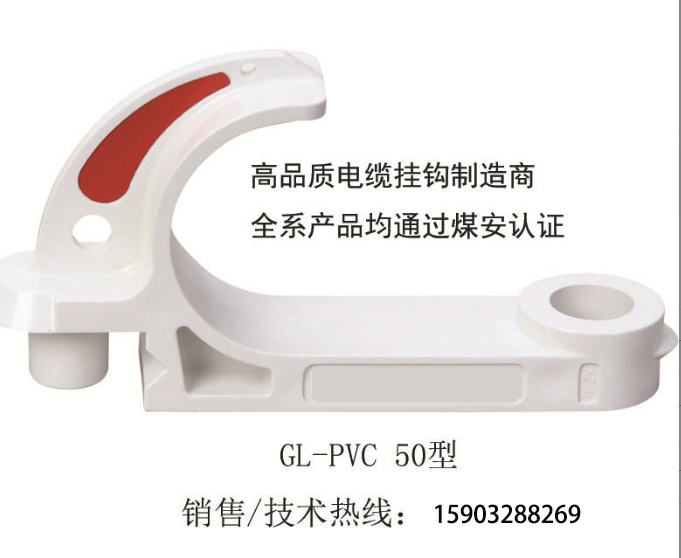

Model: GL - PVC
Material: Flame retardant PVC engineering plastics
Specifications (mm) : 18/28/38/50/58/68/80/100 / five even hook/six even ten even hook hook closure by peg /
The bearing capacity of the hook is not less than 160kg.
When the bearing capacity of the hook arc hook is 50kg, the deflection of the straight rod segment should be less than 10mm.
The surface resistance (antistatic value) of the hook shall be no more than 3×108Ω.
Flame retardant property of hook
Flame burn time (average) ≤3 seconds
Flame burn time (value) ≤10 seconds
Flameless burning time (average) ≤10 seconds
Flameless burn time (value) ≤30 seconds

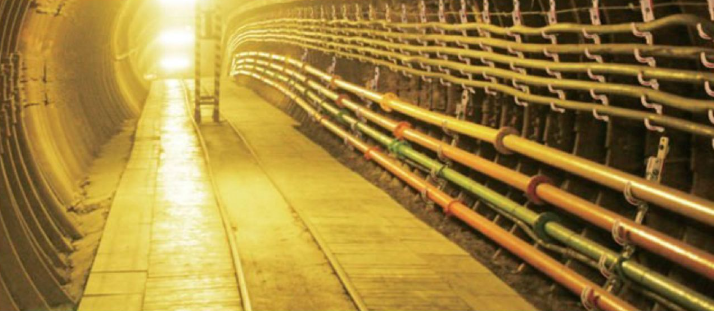

APPLICATION
